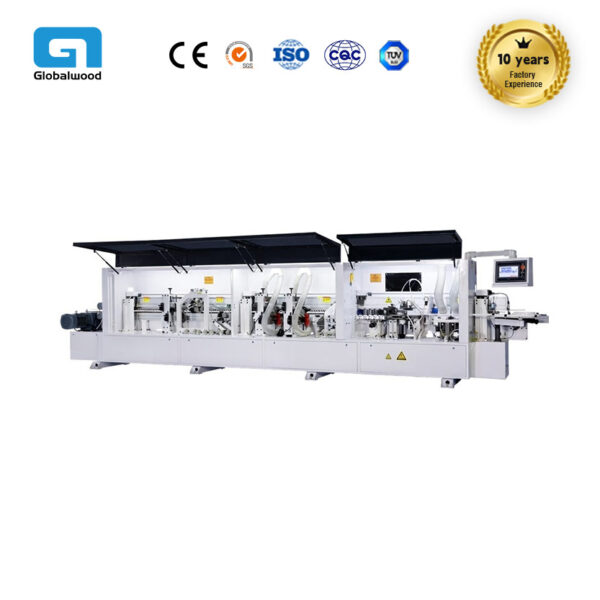

KX670

2. The conveying motor adopts Foshan brand with an output shaft of 50 mm, which has stronger torsion, pure copper national standard, and stable speed.

3. All high-speed motors adopt the well-known and reliable brand Shanghai Jiesite Motor with export configuration

4. The trimming guide rail adopts Taiwan HIWIN brand, stable and durable

5. Pneumatic system: Taiwan AIRTAC solenoid valve, Taiwan AIRTAC trimming cylinder with magnetic ring induction switch, YIRI oil-water separator

6. Electrical system: Delixi: air switch, contactor, Japan Omron travel switch

7. The pressure beam adopts three lifting columns, which can press even small boards firmly and will never deform.

8. The machine is equipped with a computer oil injection pump to inject oil to the trimming track and conveyor in real time for more stable operation and maintenance-free.

9. All parts of the machine are from Guangdong, with strong stability

10. The touch screen adopts Taiwan WEINVIEW PLC control system and touch screen

11. Heavy-duty body, with speed regulation, length counting, and air pressure alarm functions

12. The frequency converter adopts well-known brands Shenzhen Wanxin / Hailing with national warranty.

Integrated nine functions: pre-milling, gluing, trimming (head and tail), rough trimming, fine trimming, profiling tracking, edge scraping, double polishing

Glue tank heating power: 3.35Kw Board preheating power: 0.8Kw

Glue tank transmission power: 0.75Kw Conveyor belt motor power: 3.7Kw

Trimming motor power: 0.37Kw2 12000r/min.200Hz

Rough trimming motor power: 0.75Kw2 18000r/min.300Hz

Fine trimming motor power: 0.75Kw2 18000r/min.300Hz

Profiling motor power: 0.37kw2

12000r/min 200Hz

Polishing motor power: 0.37Kw4

Electric lifting: 0.37kw
